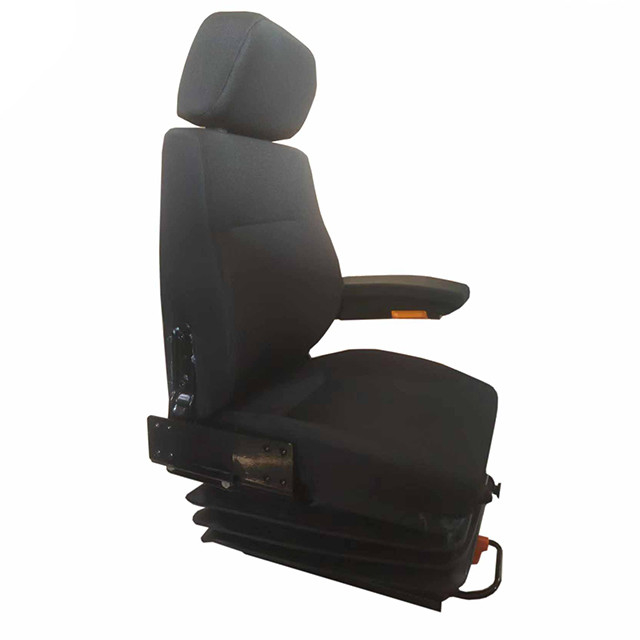

Air Suspension Truck Seats For Heavy Duty Truck Construction Machinery Seat

Basic Information
Place of Origin: Shaanxi China
Brand Name: Botai
Certification: ISO9001
Model Number: A800-13
Document: Product Brochure PDF
Minimum Order Quantity: 1 set
Price: $261-$397/set
Packaging Details: 6-8 Cartons Packed To A pallet
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 100Sets Per Week
Detail Information
Name: Air Suspension Truck Seats For Heavy Duty Truck Construction Machinery Seat Size: 570*570*1105mm
Color: Black Product Model: A800-13
Product Material: Fabric Or Customized Headrest Adjustment: 3 Gear Adjustable, Each Gear 25mm
The Back Elevation Angle Is Adjustable: 40-170° Horizontal Regulation: Front 70mm, Rear 70mm
Highlight:

air suspension truck seats

,

air ride truck seats

,

truck air ride seat for sale


Product Description



Air Suspension Truck Seats For Heavy Duty Truck Construction Machinery Seat



Product Name
Air Suspension Truck Seats For Heavy Duty Truck Construction Machinery Seat
Place of Origin
Shaanxi China
Product Model
A800-13
Product Size
570*570*1105mm
Product Material
Fabric
Product Color
Black
Seat Back Size
480*530 mm
Seat Cushion Size
480*470*335 mm
Head Restraint Adjustment
3 gears adjustable, 25mm for each gear
Backrest Adjustment
40-170°
Horizontal Regulation
Front 105mm, Rear120mm
Bottom Connecting Hole Spacing
Left and Right  216mm* Front And Rear 295.5mm
MOQ
1 Set



Our Service



Botai has a perfect product development, procurement, logistics and after-sales service system.

Regular follow-up visits, long-term service to the majority of new and old customers, so that you

are more assured, no worry!

According to your needs, we can according to the samples provided by customers and specific

technical indicators, combined with customer opinions by our professional team to recommend,

personalized production.



Our Technical Requirements



1. After the seat is assembled, the slide adjustment, backrest adjustment, and headrest adjust

    ment should be flexible and reliable, without interference.

2. The outer surface of the seat should be firmly stitched, the stitching part should not allow the

    cable head to be exposed, the seam off line and jumper phenomenon, the surface of the seat

    after assembly should be full and clean, without deformation, discoloration, wrinkling, external

     leakage, decolorization,stains, damage and scratches.

3. The frame and the join parts should be treated with rust prevention, electroplating and chemic

    al treatment should be match factory requirement.

4. Each connection of the seat should be firmly connected and reliable. Each welding component

    shall not have welding dislocation, False welding, missing welding and other defects.

5. The safety of the seat should meet the requirements of GB/T15083-2006.

6. The flame retardant characteristics of all non-metals should meet the requirements of GB8410

    -2006.


Product Function
Air Suspension Truck Seats For Heavy Duty Truck Construction Machinery Seat 0
