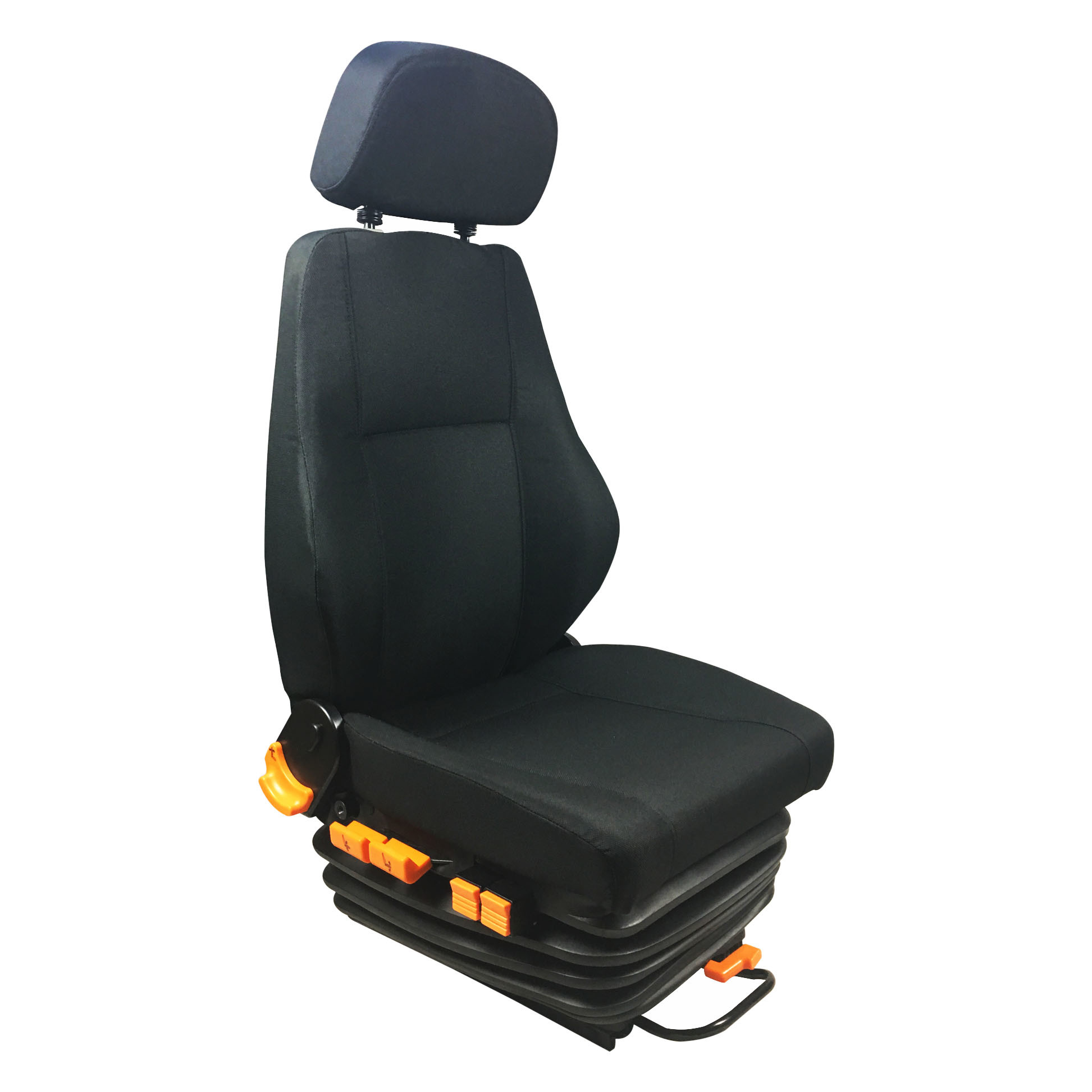

Air Suspension Tour Bus Driver Seat With Height Adjustment

Basic Information

Get Best Price Contact Now

Detail Information

Name:	Air Suspension Tour Bus Driver Seat With Height Adjustment	Backrest Size:	480*530mm
Size:	500570(1150-1210)mm	Color:	Black/customized
Product Model:	A800-8	Product Material:	Fabric Or Customized
Head Restraint Adjustment:	3 Gears Adjustable, 25mm For Each Gear	The Back Elevation Angle Is Adjustable:	80-120°
Highlight:	tour bus driver seat , bus driver seat suspension , bus driving seat

Product Description

Air Suspension Tour Bus Driver Seat With Height Adjustment details

Product Name	Air Suspension Tour Bus Driver Seat With Height Adjustment
Place of Origin	Shaanxi China
Product Model	A800-8
Product Size	500570(1150-1210) mm
Product Material	Fabric Or Pu /Leather
Product Color	Black/Customized
Seat Back Size	480*630 mm
Seat Cushion Size	480470(295-355)mm
Head Restraint Adjustment	3 gears adjustable, 25mm for each gear
Backrest Adjustment	80-120°
Horizontal Adjustment	Front 105mm, Rear 120mm, 23 gears adjustable
Bottom Connecting Hole Spacing	Left and right 216mm* front and rear 295.5mm

Air Suspension Tour Bus Driver Seat technology:

1.Forming welding frame: Q235 cold-rolled steel sheet, 2.0mm thickness, stamping, CO2 gas shielded

welding process

2.Double spring: high strength spring steel, double spring, full of elasticity, absorb bumps and vibrations,

release comfortable rebound

3.Damper: Improve frequency response, reduce energy consumption, using special oil pressure and sea

-ling medium, stable performance and long service life

4.Movable composite frame: composite shaft sleeve, mechanical welded riveting design, greatly streng

-then the durability of structural parts and reduce the damping gap

5. The safety of the seat should meet the requirements of GB/T15083-2006.
