Customized Static Seat For Aerial Lifts Crane High-Altitude Tractor Seat

Instructions for use: Common seats for all models

Headrest Adjustment

Adjustment range: 3 adjustable, each 25mm

Method: 1, move the adjustment button, and press the head pillow down to the required position,

release the button.

2. Move the headrest upward to the required position.

Elevation adjustment

Adjustment range: 80° -- 80°+41°

Method: Move the handle upward, turn the backrest to the required Angle, and then release the

handle.

Rear and height adjustment

Adjustment range: 0-60mm

Method: Move the handle upward, add (subtract) force to the back end of the seat cushion down

ward(up), and the back end of the seat cushion will drop

Lower (raise) to desired position, release the handle.

Front height adjustment

Adjustment range: 0-60mm

Method: Move the handle upward, add (subtract) force to the back end of the seat cushion down

ward(up), and make the front end of the seat cushion

Lower (raise) to desired position, release the handle.

Hardness control

Adjustment range: 40-130kg

Formula: Rotate the handwheel and adjust the preset force to the required position according to

the road conditions and the driver's weight.

Note: Do not rotate the pointer into a range less than 40 and greater than 130.

Front and rear position adjustment

Adjustment range: 120mm front and 110mm rear, 23 adjustable.

Method: Move the handle upward, move the seat forward (back) to the required position, and re

lease the handle.

Customized Static Seat For Aerial Lifts Crane High-Altitude Tractor Seat

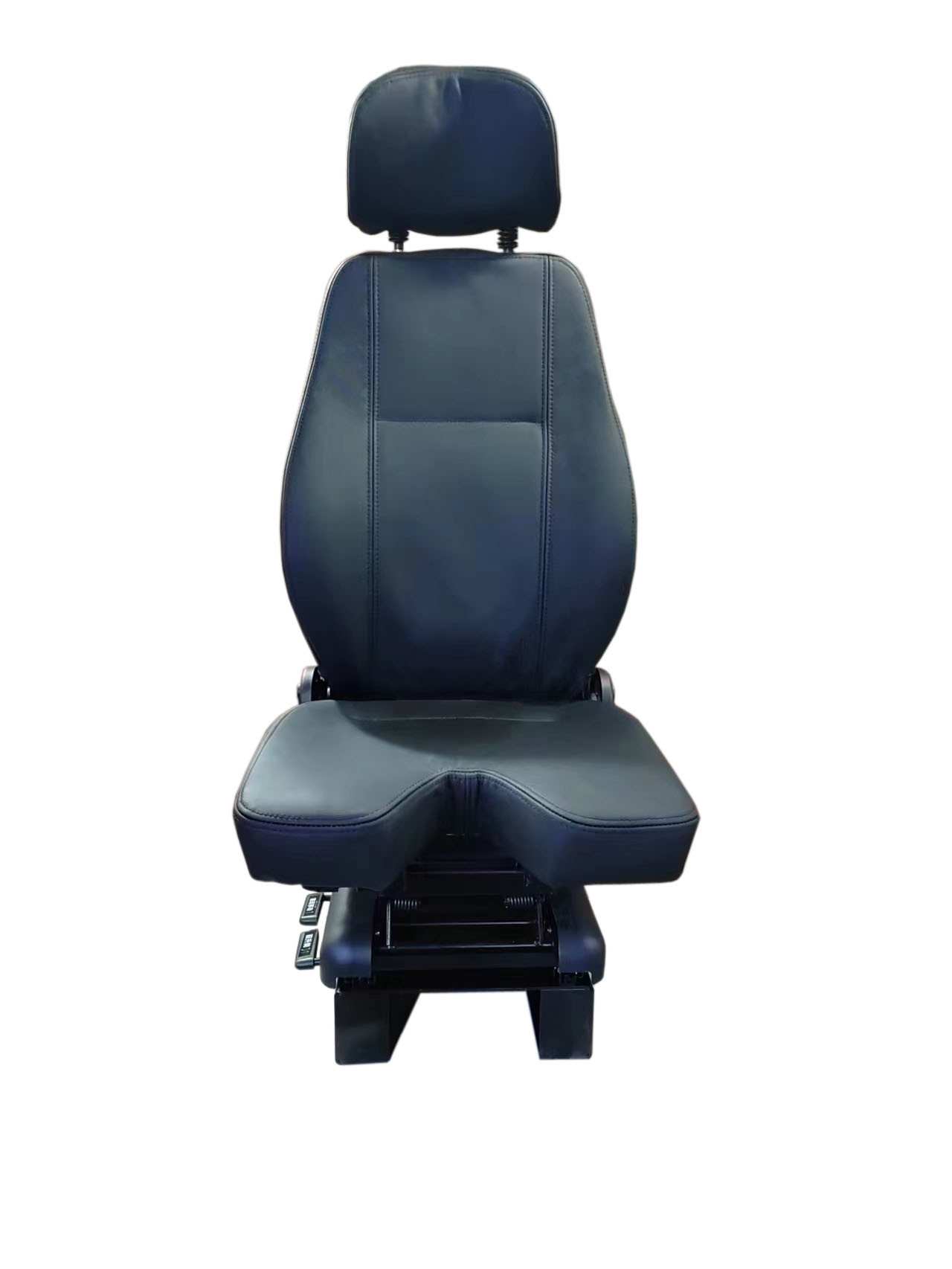

Product Show
