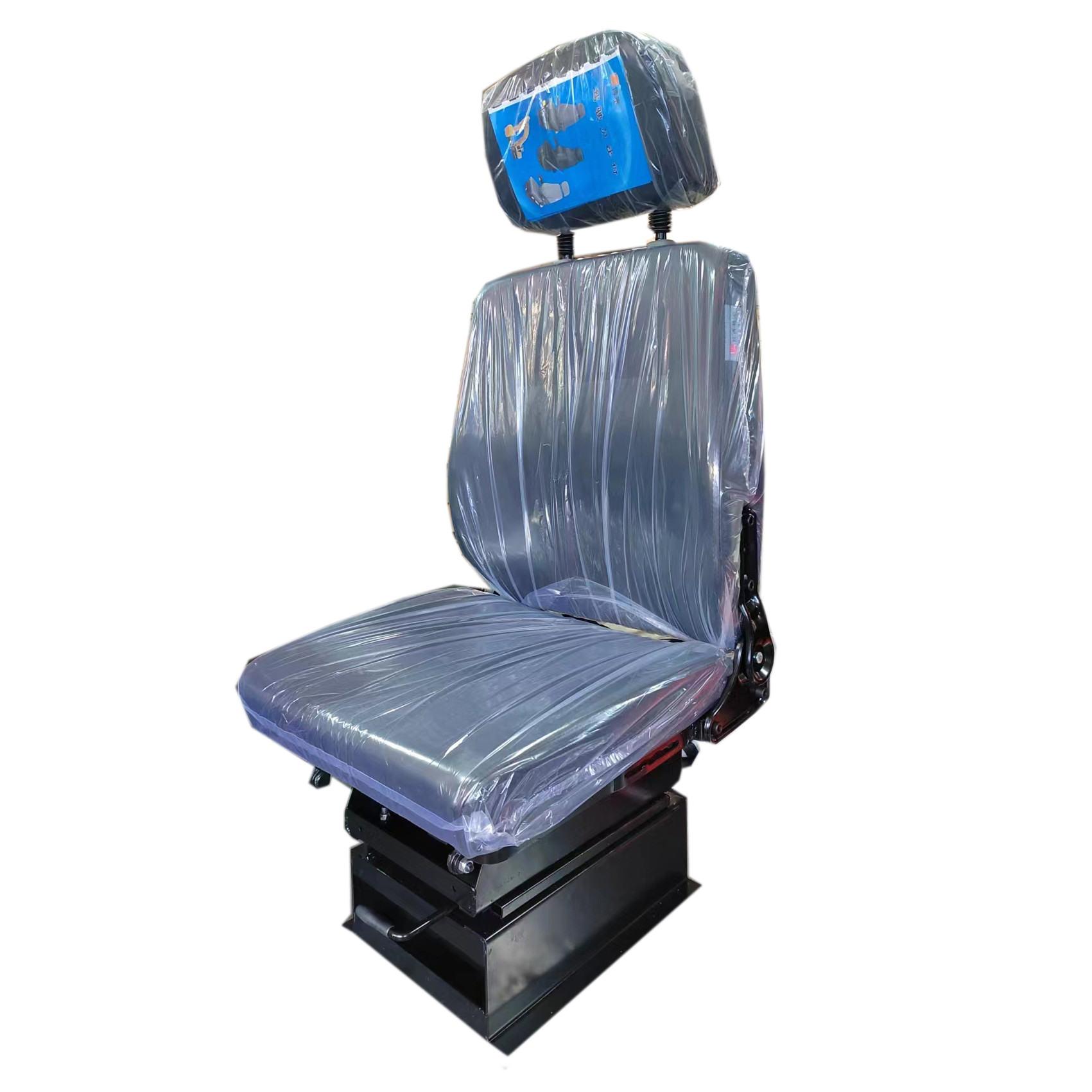

Industrial Linkage Station Operator Seat Crane

Forming welding frame: Q235 cold-rolled steel sheet, 2.0mm thickness, stamping, CO2
                                          gas shielded welding process
Double spring: high strength spring steel, double spring, full elasticity, absorbing bumps
                                        and vibrations, release comfortable rebound
Movable composite frame: composite shaft sleeve, mechanical welded riveting design,
                                        greatly strengthen the durability of structural parts and reduce t
                                        he damping gap

Instructions for use: Common seats for all models

Headrest Adjustment

Adjustment range: 3 adjustable, each 25mm
Method: 1, move the adjustment button, and press the head pillow down to the required
position,release the button.
2. Move the headrest upward to the required position.

Elevation adjustment

Adjustment range: 80° -- 80°+41°
Method: Move the handle upward, turn the backrest to the required Angle, and then rel
ease the handle.

Rear and height adjustment
Adjustment range: 0-60mm
Method: Move the handle upward, add (subtract) force to the back end of the seat cus
hion downward(up), and the back end of the seat cushion will drop

Industrial Linkage Station Operator Seat Crane Function Show
