360 Rotation Simply Type Static Seat Portal Crane Seat With Height Adjustment

Basic Information
Place of Origin: Shaanxi China
Brand Name: Botai
Certification: ISO9001
Model Number: S802-72
Document: S802-72 Details.pdf
Minimum Order Quantity: 1 set
Packaging Details: 6-8 Cartons Packed To A pallet
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 100 Sets Per Week
Detail Information
Name: 360 Rotation Simply Type Static Seat Portal Crane Seat With Height Adjustment Horizontal Adjustment: Front 70mm, Rear70mm
Backrest Size: 480*530mm Backrest Adjustment: 40-170°
Material: PU Or Fabric Or Leather Product Colorey: Black Or Cusotmized
Size: 1 Set Delivery Time: 10-15days
Highlight:

Simply Type Portal Crane Seat

,

Height Adjustment Static Seat

,

360 Rotation Static Seat


Product Description

360 Rotation Simply Type Static Seat Portal Crane Seat With Height

Adjustment Details



Product Name
360 Rotation Simply Type Static Seat Portal Crane Seat With Height Adjustment
Product Model
S802-72
Scope Of Application
Universal
Product Size
560*500*1150-1210mm
Product Material
PU /Fabric /Leather
Product Color
Black or Customized
Backrest Size
480*530mm
Cushion Size
480*470*(440-500)mm
Head Restraint Adjustment
3 gears adjustable, 25mm for each gear
Adjustable Backrest Elevation
40-170°
  Height adjustment
60mm
Horizontal adjustment
Front 70mm, Rear 70mm
Function
360°rotation
        Mounting hole spacing                                     180*230mm or as your requried


360 Rotation Simply Type Static Seat Portal Crane Seat With Height Adjust

ment Description of Material Details



Surface : thickened pvc composite artificial leather, fine, comfortable and wear-resistant.

Fabric material: good air permeability, fine workmanship, fine line, comfortable.

Sponge: Cold technology, one-time molding sponge.Not easy to collapse, high resilience.

Frame: high-strength thickened frame using carbon dioxide gas protection welding .process, reliable

and durable.

Double spring: high strength spring steel, double spring, full elasticity, absorbing bumps and vibrations,

release comfortable rebound.



360 Rotation Simply Type Static Seat Portal Crane Seat With Height Adjust

ment  Customzied Items



1: Seat cushion surface can be : high-quality PU leather, Fabric, Leather Etc.,
2: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat box, front and

rear horizontal adjustment rail, 360° rotating base, height adjustment, mechanical lumbar support,

ventilation heating function, etc., the price varies according to the option.
3: The general hole distance is commonly used: left and right 216/240/260mm * 280/295.5mm before and

after can also be customized according to customer size.

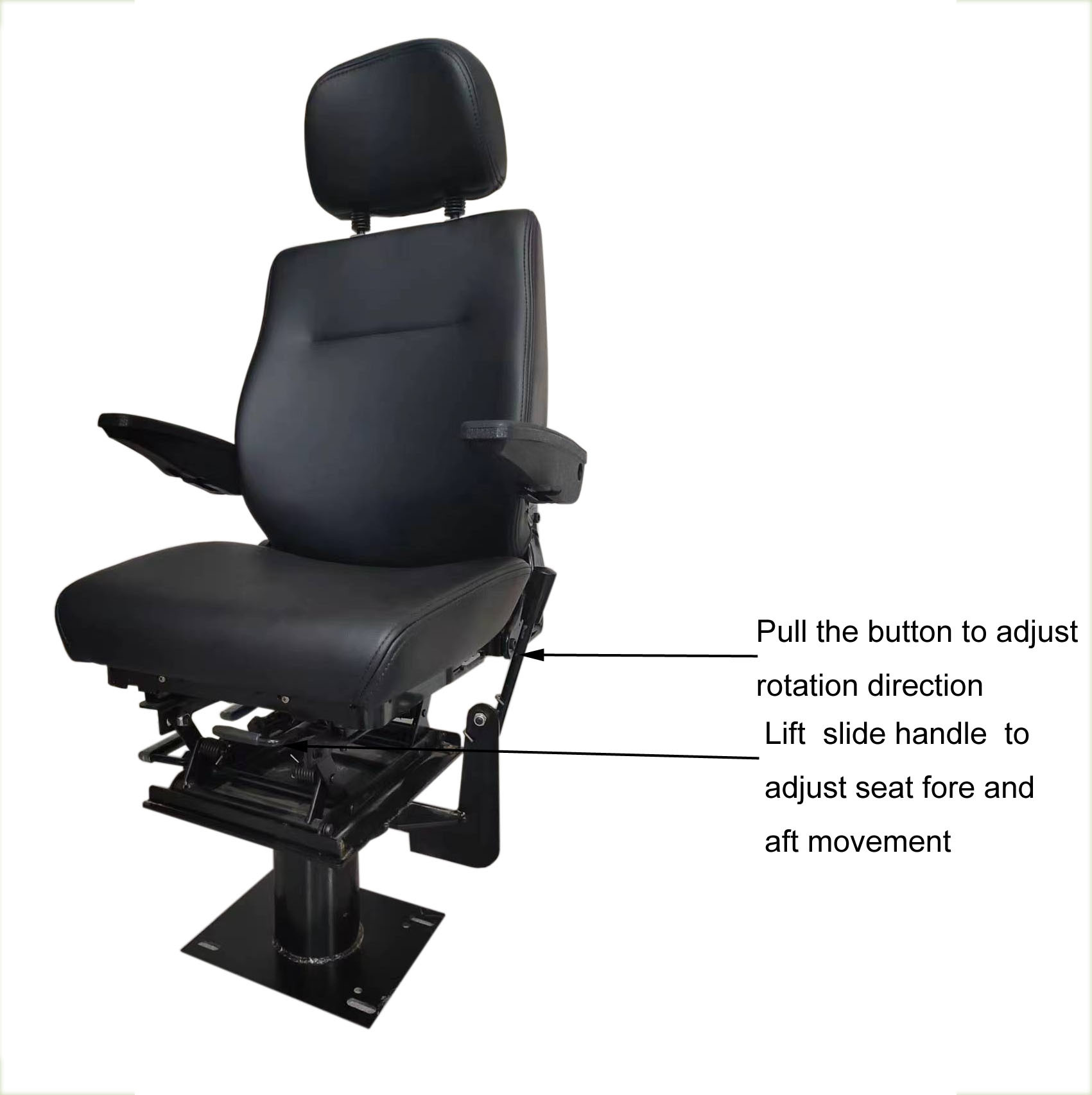

360 Rotation Simply Type Static Seat Portal Crane Seat With Height Adjust

ment  Function Show


360 Rotation Simply Type Static Seat Portal Crane Seat With Height Adjustment 0
