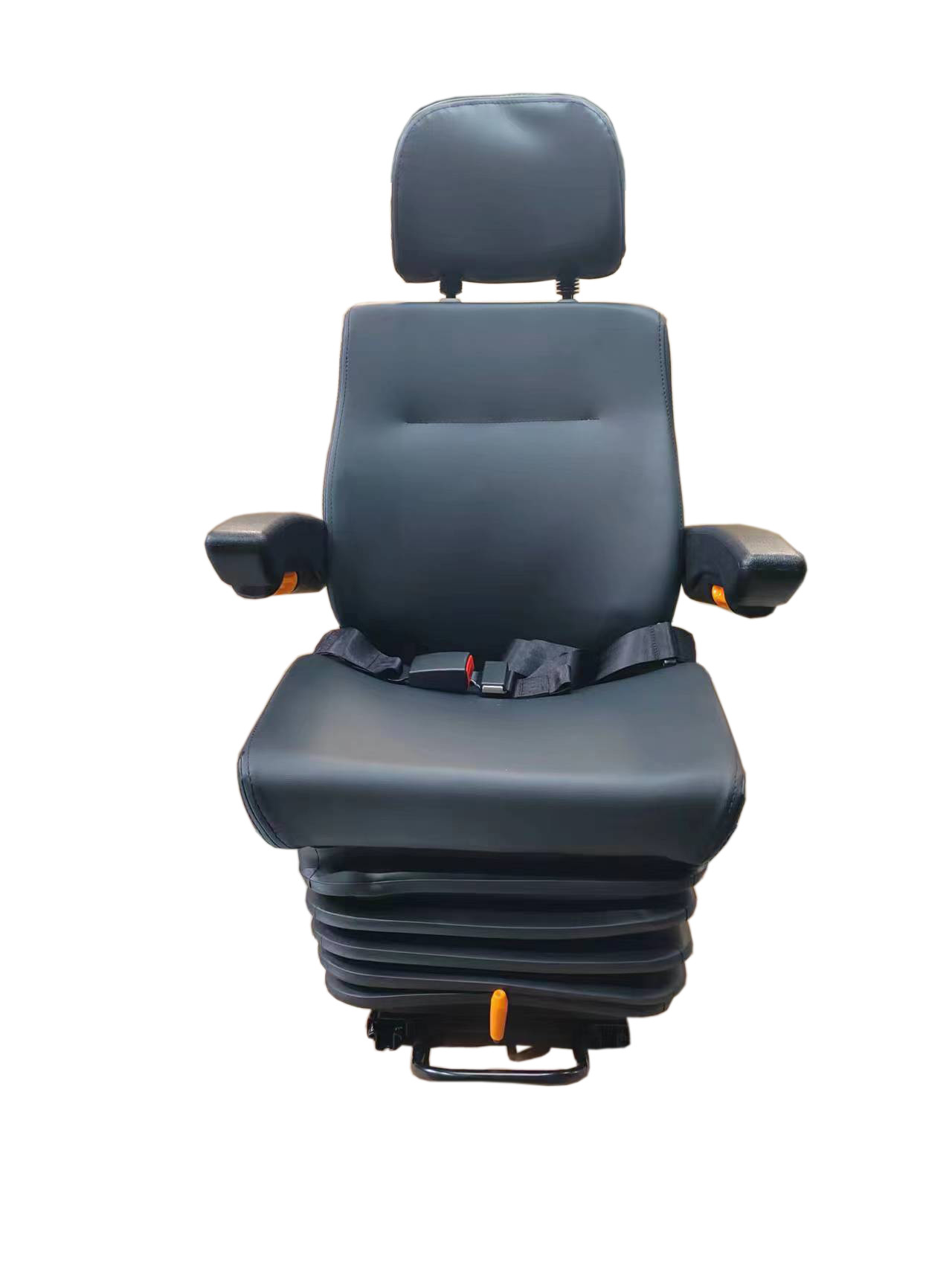

Horizontal Adjustment A800-31 Air Suspension Spring Seat for Truck Seat

Basic Information
Place of Origin: Shaanxi China
Brand Name: Botai
Certification: ISO9001:2015
Model Number: A800-31
Document: Product Brochure PDF
Minimum Order Quantity: 1 set
Packaging Details: 6-8 Cartons Packed To A pallet
Delivery Time: 10-15 days
Payment Terms: T/T
Supply Ability: 100Set Per Week
Detail Information
Product Name: China Factory Supply Air Suspension Spring Seat For Truck Seat Material: PU Can Be Leather /fabric
Color: Black Or As Your Requried Product Model: A800-31
Product Size: 500*570*1030-1090mm Horizontal Adjustment: Front 105mm Rear 120mm
Highlight:

A800-31 Air Suspension Spring Seat

,

Truck Seat Air Suspension Spring Seat

,

Horizontal Adjustment Air Suspension Spring Seat


Product Description

China Factory Supply Air Suspension Spring Seat For Truck Seat  Details



Product Name
China Factory Supply Air Suspension Spring Seat For Truck Seat
Place of Origin
 Shaanxi China
Product Model
A800-31
Scope Of Application
Universal
Product Size
500*570*1030-1090mm
Product Material
 PU or can be choose leather /fabric
Product Color
Black/ Customzied
Seat Back Size
480*530 mm
Seat Cushion Size
480*470*280-340mm
Head Restraint Adjustment
3 gears adjustable, 25mm for each gear
Backrest Adjustment
80-120°
Horizontal Adjustment
Front 105mm, Rear 120mm, 23 gears adjustable
           Height Adjustment                                                60mm
Bottom Connecting Hole Spacing
Left and right216mm ,front and back 295.5mm or according yours
MOQ
1 Set





China Factory Supply Air Suspension Spring Seat For Truck Seat

Customizable



1: Seat cushion surface can be : high-quality PU , Fabric, Leather Etc.,
2: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat
box, front and rear horizontal adjustment rail, 360° rotating base , height adjustment,
mechanical lumbar support, ventilation heating function, etc., the price varies according
to the option.
3: The general hole distance is commonly used: left and right 216/240/260mm * front

and back 280/295.5mm, also be customized .




China Factory Supply Air Suspension Spring Seat For Truck Seat Size
Details
Horizontal Adjustment A800-31 Air Suspension Spring Seat for Truck Seat 0
