Air Suspension Driver Seats Heavy Plant Industry Vehicle Driver Seat

Basic Information
Place of Origin: Shaanxi China
Brand Name: Botai
Certification: ISO9001
Model Number: A800-24
Document: Product Brochure PDF
Minimum Order Quantity: 1 set
Packaging Details: 6-8 Cartons Packed To A pallet
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 100Sets Per Week
Detail Information
Name: Air Suspension Driver Seats For Heavy Plant Industry Vehicle Driver Seat Material: PU Or Leather/Fabric
Size: 500*570*1140-1200mm Color: Black Or Customzied
Product Model: A800-24 Cushion Size: 480*470*290-350mm
Highlight:

Heavy Plant Industry Vehicle Driver Seat

,

Heavy Plant Industry Air Suspension Seat

,

Vehicle Driver Air Suspension Seat


Product Description

Air Suspension Driver Seats For Heavy Plant Industry Vehicle Driver Seat

Details :



Product Name
Air Suspension Driver Seats For Heavy Plant Industry Vehicle Driver Seat
Place of Origin
 Shaanxi China
Product Model
 A800-24
Product Material
PU/ Leather/Fabric
Product Color
 Black
Backrest Size
480*630mm
Cushion Size
480*470*290-350mm
Adjustable Backrest Elevation
80-120°

High-low Adjustment

60mm
Horizontal adjustment
Front105mm, Rear 120mm
Bottom Connecting Hole Spacing
Left and right 216mm front and back 295.5mm or as yours



Product Technology:



1. After the seat is assembled, the slide adjustment, backrest adjustment, and headrest adjustment

   should be flexible and reliable, without interference.

2. The outer fabric of the seat should be firmly stitched, the stitching part should not allow the cable

    head  to be  exposed,  the  seam off line and jumper  phenomenon, the surface of the seat after

    assembly should be full and clean, without deformation, discoloration, wrinkling, external leakage,

   decolorization, stains, damage and scratches.

3. The skeleton and the leakage parts should be treated with rust prevention, in line with the factory

    requirements, and electroplating and chemical treatment should be in line with the factory

4. Each connection of the seat  should be firmly  connected and reliable. Each  welding component

    shall not have welding dislocation, welding, welding and other defects.

5. The safety of the seat should meet the requirements of GB/T15083-2006.

6. The flame retardant characteristics of all non-metals should meet the requirements of GB8410-2006.

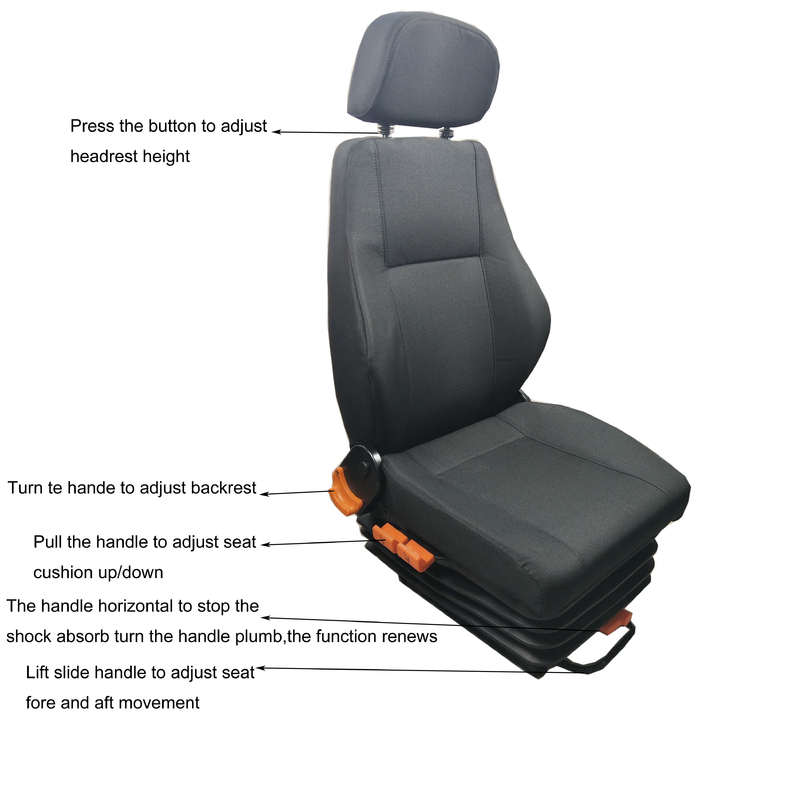

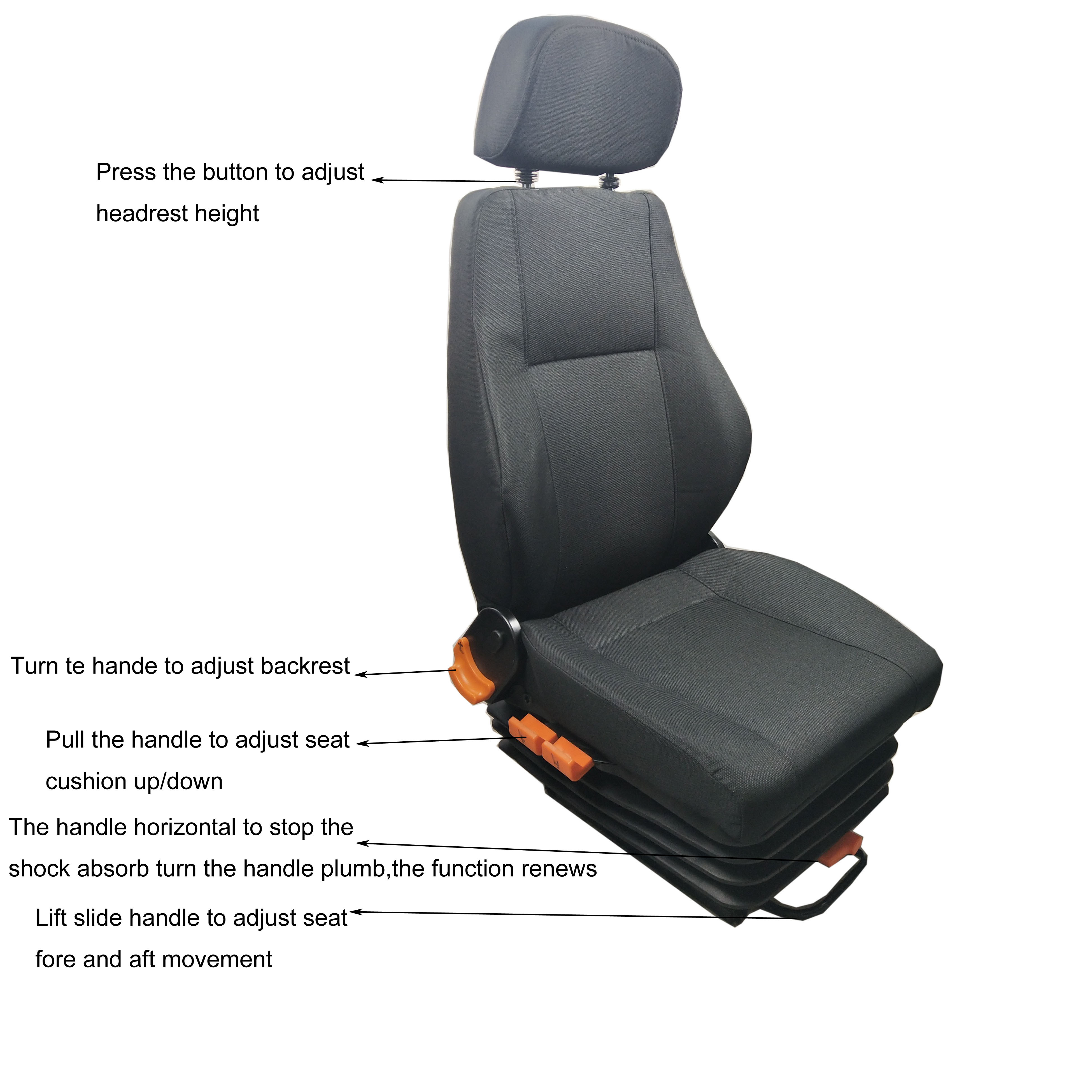

Air Suspension Driver Seats For Heavy Plant Industry Vehicle Driver Seat

Size:

Air Suspension Driver Seats Heavy Plant Industry Vehicle Driver Seat 0
