Detail Information

Name:	Static Seat S802 Swivel Crane Driver Seat With Height Backrest Adjustable	Backrest Size:	480530mm Or Can Choose 480630mm
Backrest Adjustment:	50-160° Or Choose 80-120°	Horizontal Adjustment:	Front 105mm, Rear 120mm 23 Adjustable
Material:	Fabric Or PU/ Leather Or Mix	Size:	5705701190-1250mm
Highlight:	Crane Driver Static Seat S802 , Height Backrest Adjustable Static Seat S802

Product Description

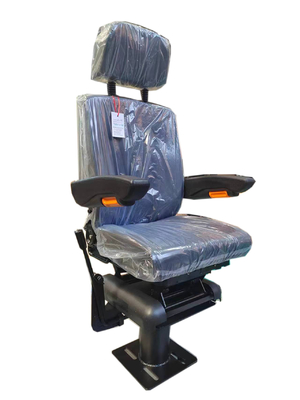

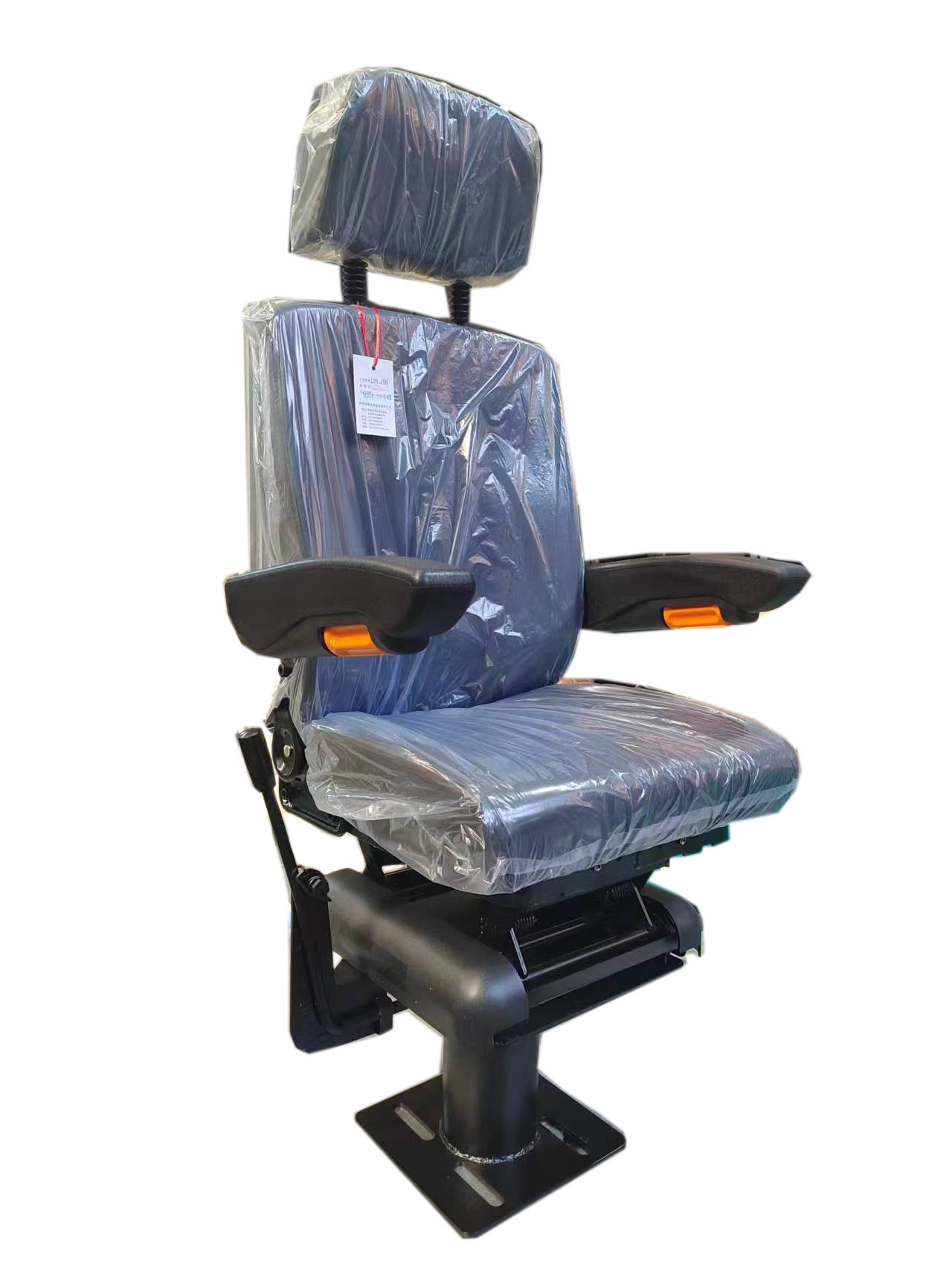

Static Seat S802 Swivel Crane Driver Seat With Height Backrest Adjustable

Details

Product Name	Static Seat S802 Swivel Crane Driver Seat With Height Backrest Adjustable
Product Model	S802-74
Product Size	5705701190-1250mm
Product Material	PU/Leather/Fabric
Product Color	Black/customized
Backrest Width	480*530mm
Cushion Width	480460(440-500)mm
Head Restraint Adjustment	3 gears adjustable, 25mm for each gear
Adjustable Backrest Elevation	50-160°
Horizontal Adjustment	Front 105mm, Rear 120mm 23 adjustable
MOQ	1 Set

Static Seat S802 Swivel Crane Driver Seat With Height Backrest Adjustable

Customization

1: Seat cushion surface can be : high-quality PU leather, Fabric, Leather Etc.,

2: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat box, front and

rear horizontal adjustment rail, 360° rotating base, height adjustment, mechanical lumbar support,

ventilation heating function, etc., the price varies according to the option.

3: The general hole distance is commonly used: left and right 216/240/260mm * 280/295.5mm before

and after can also be customized according to customer size.

4: Seat adjustment function plastic handle position: left, right,Or front can be choose

5: Mechanical weight adjustment position can be selected: left, right,Or front can be choose

6. The dimensions and functions of the seat can also be customized according to customer needs.

Static Seat S802 Swivel Crane Driver Seat With Height Backrest Adjustable

Function Show

Tag:

Static Seat S802 Swivel Crane Driver Seat With Height Backrest Adjustable

Crane Driver Static Seat S802
