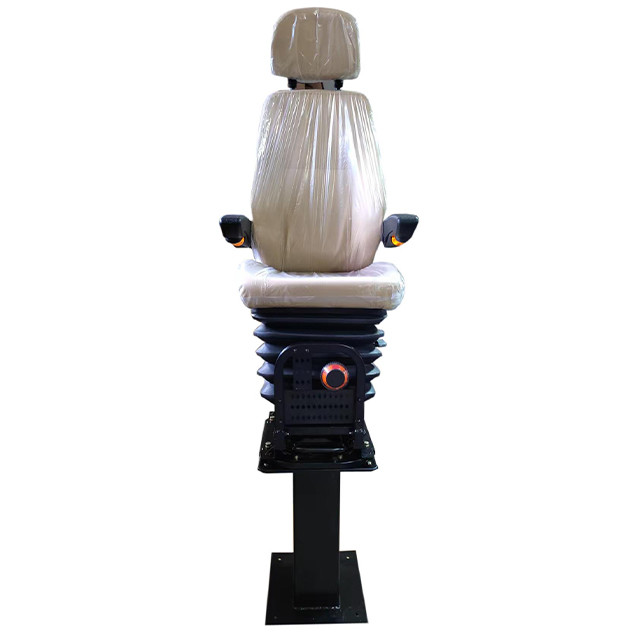

Instructions for use: Common seats for all models
Headrest Adjustment
Adjustment range: 3 adjustable, each 25mm
Method: 1, move the adjustment button, and press the head pillow down to the required position,
release the button.
2. Move the headrest upward to the required position.
Elevation adjustment
Adjustment range: 80° -- 80°+41°
Method: Move the handle upward, turn the backrest to the required Angle, and then release the
handle.
Rear and height adjustment
Adjustment range: 0-60mm
Method: Move the handle upward, add (subtract) force to the back end of the seat cushion down
ward(up), and the back end of the seat cushion will drop
Lower (raise) to desired position, release the handle.
Front height adjustment
Adjustment range: 0-60mm
Method: Move the handle upward, add (subtract) force to the back end of the seat cushion down
ward(up), and make the front end of the seat cushion
Lower (raise) to desired position, release the handle.
Hardness control
Adjustment range: 40-130kg
Formula: Rotate the handwheel and adjust the preset force to the required position according to
the road conditions and the driver's weight.
Note: Do not rotate the pointer into a range less than 40 and greater than 130.
Front and rear position adjustment
Adjustment range: 120mm front and 110mm rear, 23 adjustable.
Method: Move the handle upward, move the seat forward (back) to the required position, and rel
ease the handle.
