Detail Information

Name:	Adjustable Mechanical Suspension Industry Linkage Platform Coal Loader Seat	Material:	Fabric
Size:	5005701150-1210mm	Color:	Blue
Product Model:	M801-22	Backrest Size:	480*530mm
Delivery Time:	Around 15days
Highlight:	Adjustable equipment suspension seat , equipment suspension seat , Coal Loader Seat

Product Description

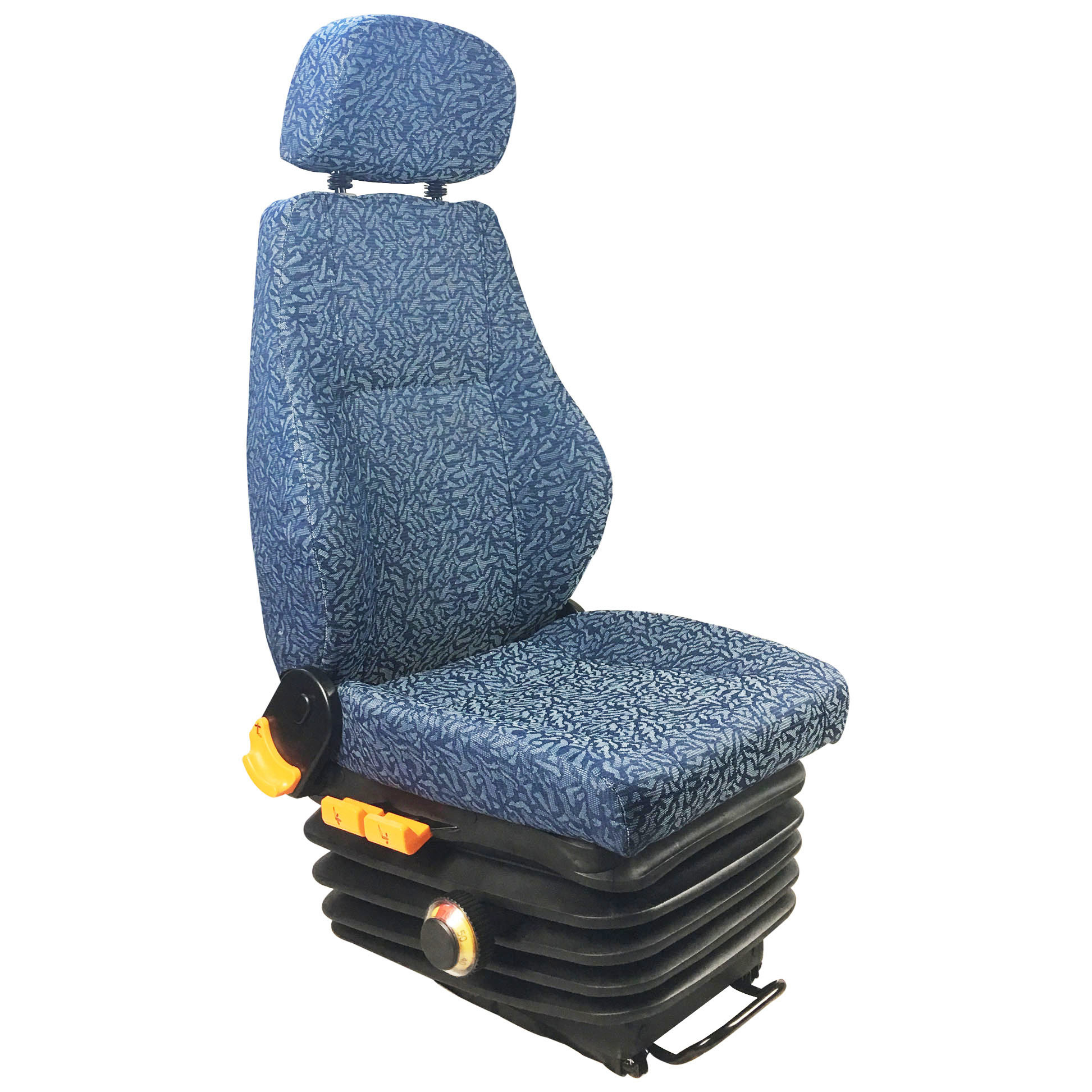

Adjustable Mechanical Suspension Industry Linkage Platform Coal Loader

Seat Details

Product Name	Adjustable Mechanical Suspension Industry Linkage Platform Coal Loader Seat
Place of Origin	Shaanxi China
Product Model	M801-22
Scope Of Application	Universal
Product Size	5005701150-1210mm
Product Material	Fabric
Product Color	Blue
Seat Back Size	480*630 mm
Seat Cushion Size	480470295-355mm
Head Restraint Adjustment	3 gears adjustable, 25mm for each gear
Backrest Adjustment	80-120°
Horizontal Regulation	Front 105mm, rear 120mm 23 adjustable
Weight Adjustment	40-130 kg
Bottom connecting hole spacing	Left and right 216mm* front and rear 295.5mm
High and low adjustment	Stroke 60mm

Adjustable Mechanical Suspension Industry Linkage Platform Coal Loader

Seat Application Area

M801 suspension rotating track locomotive seat range: high-power railway rolling stock,
high-speed rail bullet train, urban rail subway, repair car internal combustion engine car seat,
multi-function adjustment and shock-absorbing seat widely used in mine, metallurgy, railway

freight yard rail transport and crane operations.
M801 series seats use scope: water cleaning ships, shipbuilding heavy industry, gas turbines,
offshore oil platforms, offshore ships, transport ships, passenger ships, other special ships, s
pecific seat parameters or customized requirements consulting business manager.

Adjustable Mechanical Suspension Industry Linkage Platform Coal Loader

Seat Function How To Work

Headrest Adjustment :Rotate hand wheel adjust armrest

Backrest Adjustment:Turn the handle to adjust backrest

Lifting Adjustment :Pull the handle to adjust seat cushion up/down

Weight Adjustment: Clockwise rotation of the shock absorber becomes hard, counterclockwise

rotation of the shock absorber becomes soft

Sliding Adjustment :Lift slide handle to adjust seat fore and aft movement

Tag:

Place of Origin:	Shaanxi China
Brand Name:	Botai
Certification:	ISO9001
Model Number:	M801-22
Document:	M801-22 Details.txt

Minimum Order Quantity:	1 set
Price:	$141-$220/set
Packaging Details:	6-8 Cartons Packed To A pallet
Delivery Time:	10-15days
Payment Terms:	T/T
Supply Ability:	100Sets Per Week
