Detail Information

Product Name:	Mechanical Suspension Truck Seats Heavy Plant Industry Truck Driver Seat	Product Model:	M801-25
Product Size:	5705701150-1210mm	Product Material:	Pu+Fabric Or Leather
Product Color:	Black +Grey Or Customized	Head Restraint Adjustment:	3 Gears Adjustable, 25mm For Each Gear
Backrest Adjustment:	80-120°	Customzied:	Headreat/handrest/Rotation Base/safety Belt Etc.,
Backrest Size:	W480*H630mm	Cushion Size:	W480D470H300-360mm
Highlight:	Truck Driver Seat , mechanical suspension truck seats , mechanical suspension seat

Product Description

Mechanical Suspension Truck Seats Heavy Plant Industry Truck Driver Seat

Detail

Product Name	Mechanical Suspension Seat Heavy Plant Industry Seat Truck Driver Seat
Place of Origin	Shaanxi China
Product Model	M801-25
Scope Of Application	Universal
Product Size	L570W570H1150-1210mm
Product Material	PU+Fabric or customized
Product Color	Black+Grey or cusomzied
Backrest size	W480*H630 mm
Cushion size	W480D470H300-360mm
Adjustable Backrest Elevation	80-120°
Horizontal adjustment	Front 105mm, Rear 120mm
Height and Lower Adjustment	60mm
Customzied	Safety Belt/Armrest/Angle adjuster/Rotation base / Level adjustment/High and low adjustment etc.,

Mechanical Suspension Truck Seats Heavy Plant Industry Truck

Driver Seat Technical Specification

1.Forming welding frame: Q235 cold-rolled steel sheet, 2.0mm thickness, stamping,

CO2 gas shielded welding process

2.Double spring: high strength spring steel, double spring, full of elasticity, absorb b

umps and vibrations, release comfortable rebound

3.Damper: Improve frequency response, reduce energy consumption, using special

oil pressure and sealing medium, stable performance and long service life

4. The Frame and the leakage parts should be treated with rust prevention, in line

with the factory requirements, and electro plating and chemical treatment should

be in line with the factory

5. Each connection of the seat should be firmly connected and reliable. Each weldin

g component shall not have welding dislocation, welding, welding and other defects.

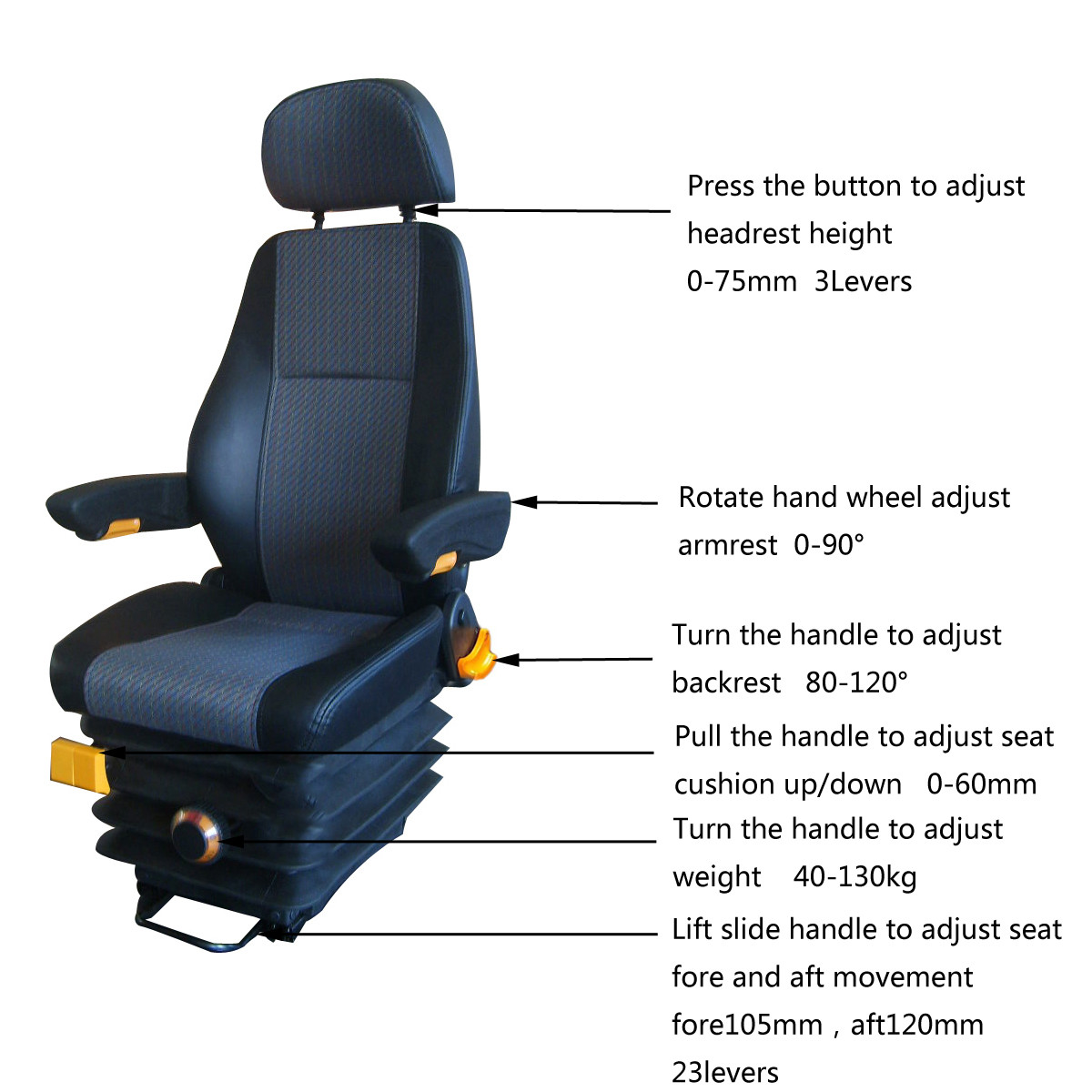

Mechanical Suspension Truck Seats Heavy Plant Industry Truck

Driver Seat Function
