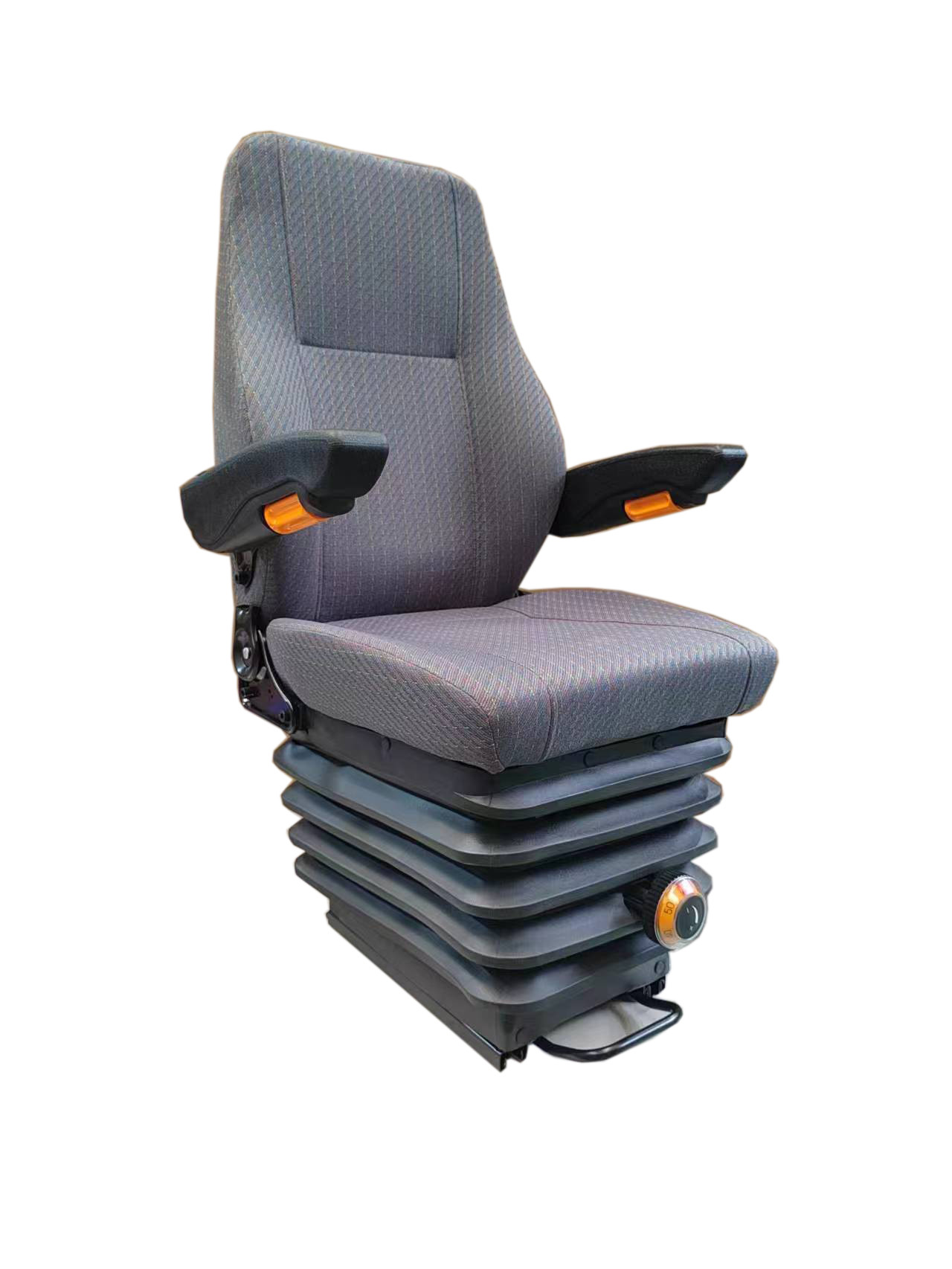

China Factory Mechanical Suspension Seat For Electronic Control Platform

Basic Information

Get Best Price Contact Now

Detail Information

Product Name:	China Factory Mechanical Suspension Seat For Electronic Control Platform	Product Model:	M801-61
Product Size:	500500980-1040mm	Product Material:	Fabric /PU
Product Color:	Blue Or Customized	Backrest Size:	W480*H630mm
Highlight:	500500980-1040mm Mechanical Suspension Seat , Electronic Control Platform Mechanical Suspension Seat

Product Description

China Factory Mechanical Suspension Seat For Electronic Control

Platform Details

Product Name

China Factory Mechanical Suspension Seat For Electronic Control Platform

Place of Origin	Shaanxi China
Product Model	M801-61
Scope Of Application	Universal
Product Size	500500980-1040mm
Product Material	Fabric /PU
Product Color	Blue or customized
Backrest size	W480*H630mm
Cushion size	W480D470H370-430mm
Adjustable Backrest Elevation	40-170°
Horizontal adjustment	Front 105mm, Rear 120mm
Weight Adjustment	40-130kg
Bottom Connecting Hole Spacing	as your requried

China Factory Mechanical Suspension Seat For Electronic Control

Platform Material Supply

Forming welding frame: Q235 cold-rolled steel sheet, 2.0mm thickness, stamping, CO2 gas

shielded welding process

Double spring: high strength spring steel, double spring, full elasticity, absorbing bumps and

vibrations, release comfortable rebound

Damper: Improve frequency response, reduce energy consumption, using special oil pressure

and sealing medium, stable performance and long service life

Movable composite frame: composite shaft sleeve, mechanical welded riveting design, greatly

strengthen the durability of structural parts and reduce the damping gap

China Factory Mechanical Suspension Seat For Electronic Control

Platform Function Show
