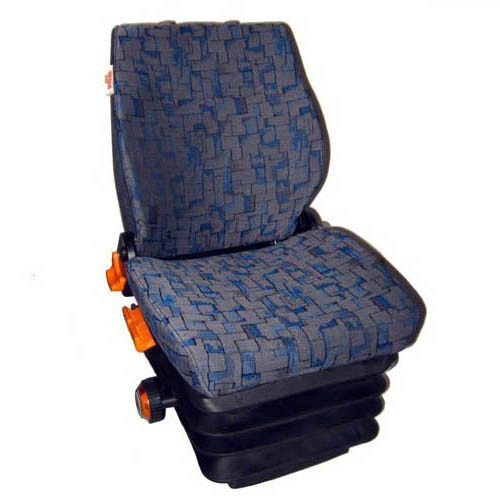

Mechanical Suspension Seat Loader Tractor Seat Customized With Weight Adjustment

Basic Information

Get Best Price Contact Now

Detail Information

Name:	Mechanical Suspension Seat Loader Tractor Seat Customized With Weight Adjustment	Material:	Fabric
Size:	570570800-860mm	Color:	Blue
Product Model:	M801-69	Base Mounting Hole Spacing:	Left And Right 216mm And Front And Back 295.5mm
Highlight:	Blue Mechanical Suspension Seat , 295.5mm Mechanical Suspension Seat , 216mm Mechanical Suspension Seat

Product Description

Mechanical Suspension Seat Loader Tractor Seat Customized With Weight

Adjustment Details

Product Name	Mechanical Suspension Seat Loader Tractor Seat Customized With Weight Adjustment
Place of Origin	Shaanxi China
Product Model	M801-69
Product Size	570570800-860mm
Product Material	Fabric
Product Color	Blue
Backrest size	480*530mm
Cushion size	480470290-350mm
Adjustable Backrest Elevation	40-170°
Horizontal adjustment	Front 105mm, Rear 120mm
Bottom Connecting Hole Spacing	Left and right216mm *front and back 295.5mm or Custormized
Weight Adjustment	40-130 kg
MOQ	1 Set

Mechanical Suspension Seat Loader Tractor Seat Customized With Weight

Adjustment Technology

1.Forming welding frame: Q235 cold-rolled steel sheet, 2.0mm thickness, stamping, CO2 gas shielded

welding process

2.Double spring: high strength spring steel, double spring, full of elasticity, absorb bumps and vibrations,

release comfortable rebound

3.Damper: Improve frequency response, reduce energy consumption, using special oil pressure and

sealing medium, stable performance and long service life

4.Movable composite frame: composite shaft sleeve, mechanical welded riveting design, greatly streng

-then the durability of structural parts and reduce the damping gap

Mechanical Suspension Seat Loader Tractor Seat Customized With Weight

Adjustment Fuction
