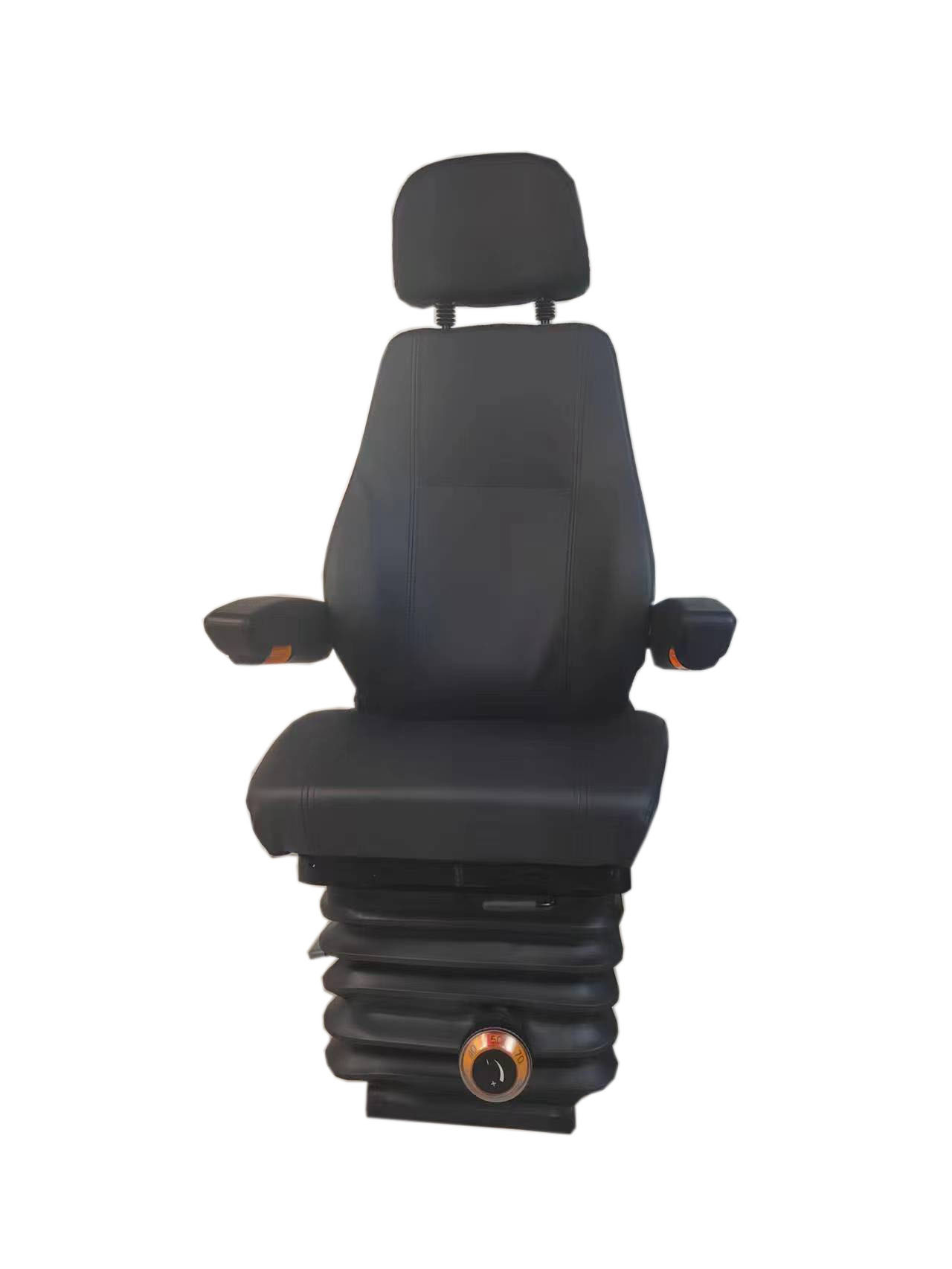

Mechanical Suspension Seat For Agricultural Tractor With Height Adjustment

 Mechanical Suspension Seat For Agricultural Tractor With Height

Adjustment Details

Mechanical Suspension Seat For Agricultural Tractor With Height

Adjustment Material

1.Forming welding frame: Q235 cold-rolled steel sheet, 2.0mm thickness, stamping, CO2 gas

   shielded welding process

2.Double spring: high strength spring steel, double spring, full of elasticity, absorb bumps and

   vibrations, release comfortable rebound

3.Damper: Improve frequency response, reduce energy consumption, using special oil pressure

   and sealing medium, stable performance and long service life

4.Movable composite frame: composite shaft sleeve, mechanical welded riveting design, greatly

   strengthen the durability of structural parts and reduce the damping gap

Mechanical Suspension Seat For Agricultural Tractor With Height

Adjustment Customizable

1: Seat surface can be choose: PU leather, Fabric, Leather Etc.,

2: Fabric color and style Can be customized.

3: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat box, front

    and rear horizontal adjustment rail, height adjustment , ventilation or heating function, etc., the

    price according to the option.

4: The general hole distance is commonly used: 216/240/260mm * 280/295.5mm before and after ,

    or customized .

5: Seat adjustment function plastic handle position can be choose : left, right,or front

6: Mechanical weight adjustment position can be selected: left, right,or front

7.Backrest size can be choose 530/630mm

Mechanical Suspension Seat For Agricultural Tractor With Height

Adjustment Function
