Detail Information

Name:	Mechanical Suspension Crane Seat Tractor Seat M801 For Heavy Duty Work	Material:	Fabric
Size:	5705701140-1210m	Color:	Black Or As Your Requried
Product Model:	M801-79	Base Mounting Hole Spacing:	Left And Right 216mm And Front And Back 295.5mm
Highlight:	Heavy Duty Work Mechanical Suspension Seat , M801 Mechanical Suspension Seat , Tractor Seat Mechanical Suspension Seat

Product Description

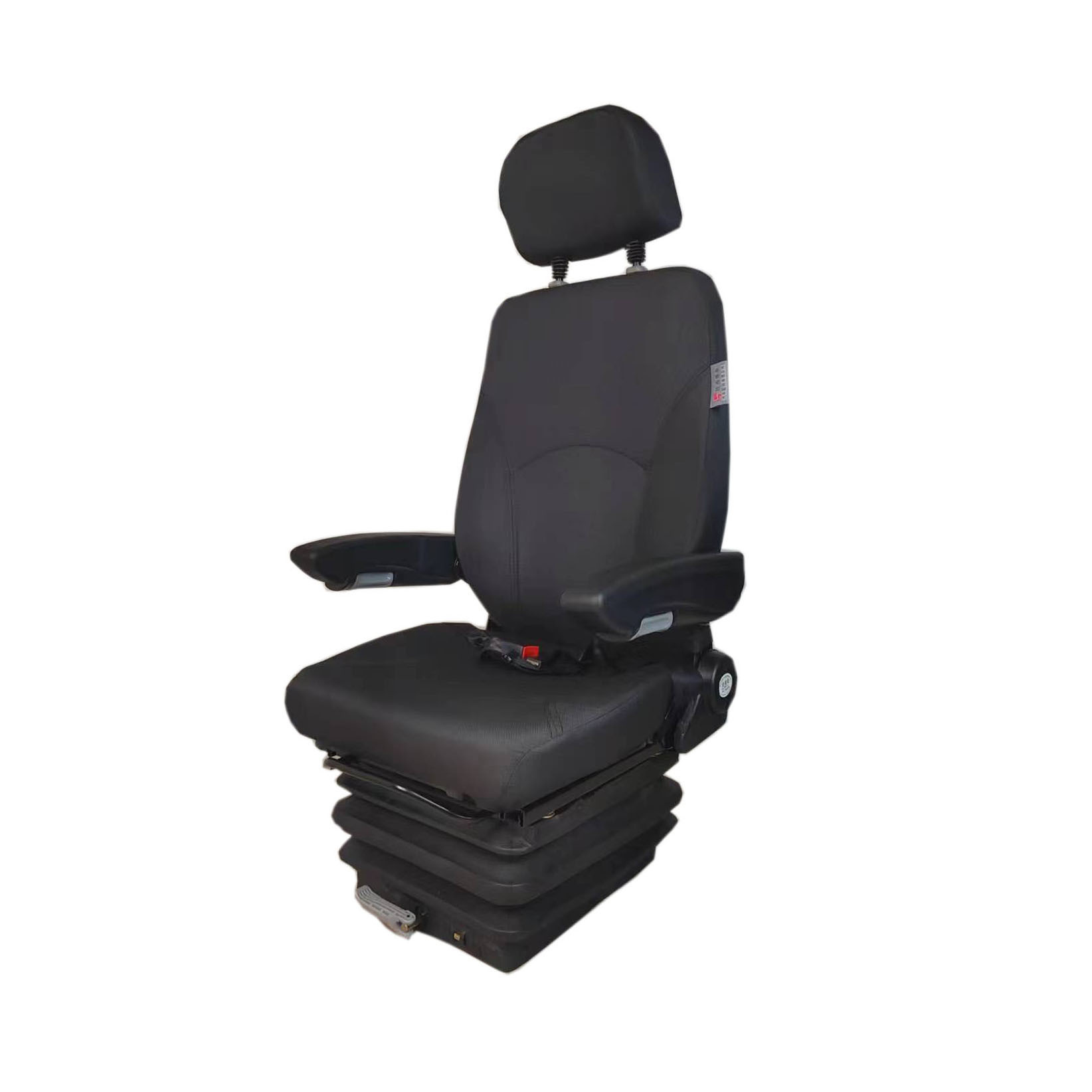

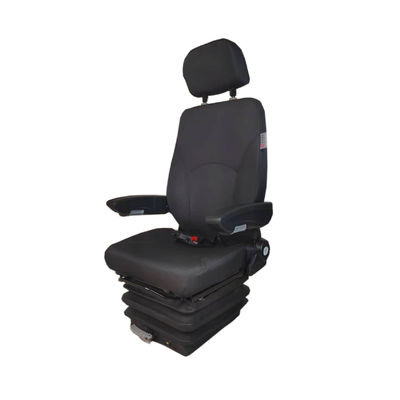

Mechanical Suspension Crane Seat Tractor Seat M801 For Heavy Duty Work

Details

Product Name	Mechanical Suspension Crane Seat Tractor Seat M801 For Heavy Duty Work
Place of Origin	Shaanxi China
Product Model	M801-79
Product Size	5705701140-1210mm
Product Material	Fabric
Product Color	Black
Backrest size	480*630mm
Cushion size	480470mm 290-360mm
Adjustable Backrest Elevation	80-120°
Horizontal adjustment	Front 105mm, Rear 120mm
Bottom Connecting Hole Spacing	Left and right 216mm*Front and back 295.5mm or Custormized
Weight Adjustment	40-130 kg
MOQ	1 Set

Mechanical Suspension Crane Seat Tractor Seat M801 For Heavy Duty Work

Advantage

The seat is suitable for crane tractor or road work, the shock absorption effect is good, used on bumpy

road, the driver will not feel uncomfortable, the sponge resilience is good, the fabric is made of environ

-mentally friendly leather or fabric will not smell, the seat can be adjusted forward and backward flexibly,

the backrest can be adjusted to 180 degrees, the headrest can be adjusted flexibly, the seat can be

installed or mechanical waist support.

Mechanical Suspension Crane Seat Tractor Seat M801 For Heavy Duty Work

Function Show

1.Headrest adjustment:75mm 3Levers

2.Backrest angle adjustment :40-170°

3.Height and tilt adjustment :9°(70mm)

4.Armrest adjustment:0-90°

5.Horizontal adjustment:fore70 mm,aft 70 mm

6.Weight adjustment:40-130kg

Mechanical Suspension Crane Seat Tractor Seat M801 For Heavy Duty Work

Product Size As Following

Mechanical Suspension Crane Seat Tractor Seat M801 For Heavy Duty Work 0
