Place of Origin: | Shaanxi China |
---|---|
Brand Name: | Botai |
Certification: | ISO9001 |
Model Number: | M801-87 |
Document: | M801-87 Details.pdf |
Minimum Order Quantity: | 1 set |
Packaging Details: | 6-8 Cartons Packed To A pallet |
Delivery Time: | 10-15days |
Payment Terms: | T/T |
Supply Ability: | 100Sets Per Week |
Name: | Mechanical Suspension Seat Subway Seats Backrest Adjustable | Bottom Connecting Hole Spacing: | Front And Rear 295.5mm* Left And Right 216mm |
---|---|---|---|
Backrest Size: | 480*630mm | Headrest Adjustment: | 3 Levers Adjustable, 25mm Per Lever |
Cushion Size: | 480*470*300mm | Horizontal Adjustment: | Front 105mm Rear 120mm |
Highlight: | 630mm Subway Seats,Adjustable Backrest Subway Seats,Mechanical Suspension Subway Seats |
Mechanical Suspension Seat Subway Seats Backrest Adjustable Details
Product Name
|
Mechanical Suspension Seat Subway Seats Backrest Adjustable
|
Place of Origin
|
Shaanxi China
|
Product Model
|
M801-87
|
Product Size
|
570*570*1150mm
|
Product Material
|
PU
|
Product Color
|
Black
|
Backrest size
|
480*630mm
|
Cushion size
|
480*470 *300mm
|
Height Adjustable | NO |
Adjustable Backrest Elevation
|
80-120°
|
Horizontal adjustment
|
Front105mm, Rear120mm
|
Bottom Connecting Hole Spacing | Custormized |
Weight Adjustment
|
40-130 kg
|
MOQ
|
1 Set
|
Mechanical Suspension Seat Subway Seats Backrest Adjustable Customozied
Can Be Choose
1: Seat surface can be choose: PU leather, Fabric, Leather Etc.,
2: Fabric color and style Can be customized.
3: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat box, front
and rear horizontal adjustment rail, height adjustment , ventilation or heating function, etc., the
price according to the option.
4: The general hole distance is commonly used: 216/240/260mm * 280/295.5mm before and after ,
or customized .
5: Seat adjustment function plastic handle position can be choose : left, right,or front
6: Mechanical weight adjustment position can be selected: left, right,or front
7.Backrest size can be choose 530/630mm

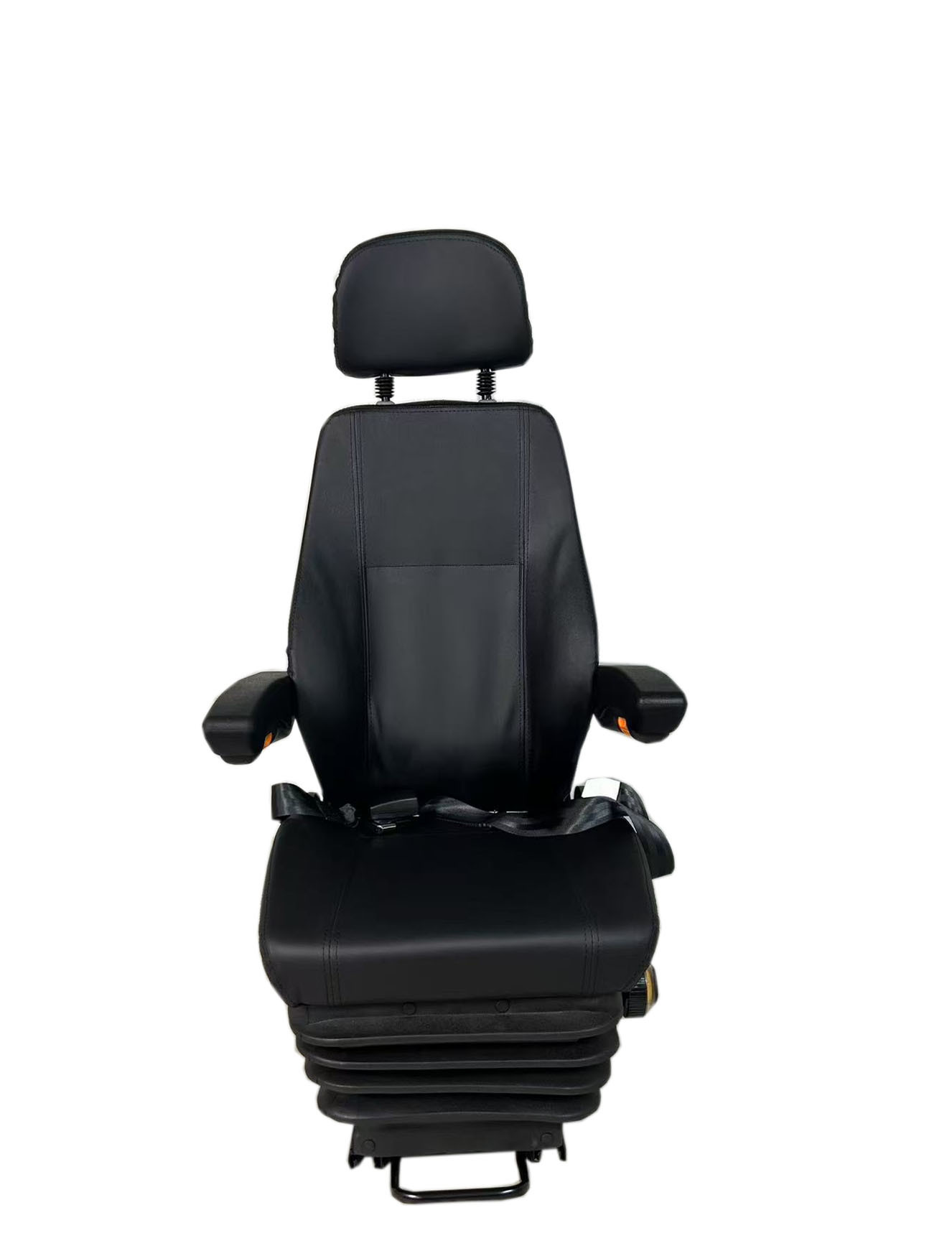

Mechanical Suspension Seat Subway Seats Backrest Adjustable Size Show
